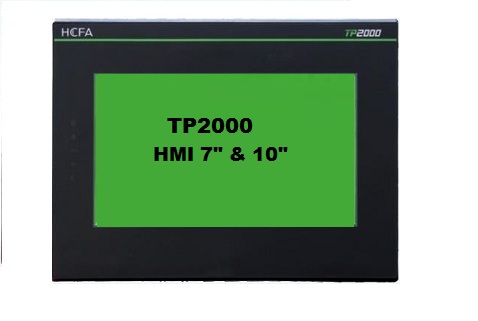

TheTP2000 Series Human Machine Interface (HMI) provides various touch screens withmultiple dimensions and colors. All brands of PLCs can be supported by TP2000series HMI with internal protocol. It also offers fast and convenient controlfunctions for Industries.
| Parameter | TL2507 | TP2507 | TP2507-E |
| Color display | 16-bit | 24-bit | 24-bit |
| Ethernet | None | None | Provided |
| SD card | None | Provided | Provided |
| USB HOST | Provided | Provided | Provided |
| USB DEVICE | Provided | Provided | Provided |
| COM1/ COM3 | Provided | Provided | Provided |
| COM2/ COM4 | None | Provided | Provided |
| Isolated power supply | None-isolated power Surge protection | Isolated power Surge protection | Isolated power Surge protection |
| Display | 7'' TFT LCD |
| Resolution | 800×480 |
| Color | 24/ 16 bit |
| Brightness | 300 cd/m2 |
| Backlight | LED |
| LCD lifetime | 50,000 hours |
| Touch Panel | 4 wire resistive touch panel(Surface hardness 4H) |
| CPU | 600MHz ARM Cortex A8 |
| Memory | 128M Flash+128M DDR3 |
| RTC | Built in real-time clock |
| Ethernet | 10M / 100M Ethernet port |
| USB Port | 1 USB Device 2.0 port 1 USB Host 2.0 port |
| Program Download | USB Host/ USB Slave/ SD card/ Ethernet are provided. |
| COM port | COM1/COM2: RS232/ RS485/ RS422 COM3/COM4: RS232 |
| Power Consumption | < 10W |
| Rated voltage | 24VDC, Input Range: 18V~28VDC |
| Power protection | Isolated power supply block, Protect from surging and thunderstrike |
| Allowable momentary power-off | < 5mS |
| CE | Complied with EN61000-6-2:2005, EN61000-6-4:2007 |
| RoHS | Surge Immunity ±4KV, EFT: ±4KV, ESD: 4KV, Air: 8KV |
| Operation Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Operation Humidity | 10-90% RH (Without condensation) |
| Vibration Resistance | 10~25 Hz(2G/30min in X,Y,Z direction) |
| Cooling | Natural air cooling |
| Enclosure Rating | Front IP65(With NEMA Panel), Back IP20 |
| Housing Material | PBT+PC |
| Cutout Dimension | 191.5×137.6(mm) |
| Dimension | 206.4×155.2×41.0(mm) |
| Weight | About 800g |
