TP930

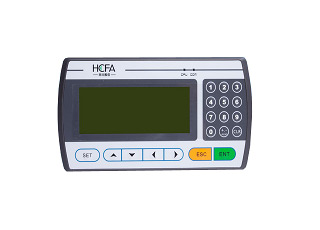

TP930 is a small Human-Machine Interface that is used with many kinds of PLC (or the other intelligent controllers with communication ports). With TP930, both the values of the PLC inner registers and the relays status of PLC can be monitored or changed through texts or LEDs. So the operation of the machines or the devices is more easy and convenient.

download manual inquiry Now! download brochure

WARNING: The product may be damaged if the input voltage is out of range or the positive and negative poles are connected incorrectly.

Input Voltage	DC12V-DC24V
Power Consumption	〈2W (TYP1.5W)
Max. Power Cut Time	〈20ms
Max. Voltage	AC1000V-10mA 1min.(between signal and GND)
Insulative Resistance	DC500V-about 10MΩ （between signal and GND）
Ambient Requirement
Operation Temperature	0~50℃
Storage Temperature	–20~70℃
Ambient Moisture	20~90%（no condensation）
Vibration Resistance	10~25Hz(Max. 2G for 30 min. in any of the X,Y,Z axis)
Interference Resistance	Voltage Noise： 1500Vp-p
Interference Resistance	Pulse period: 1us, lasting for 1s
Atmosphere	No corrosive gas
Protection Structure	IP65 (Front board)

32 Bit 72MHz ARM RISC CPU is used, ARM CORTEX-M3, fluent interface running.
Standard COM0: RS232/485/422, COM1: RS232 double-line communication, and it can work with different PLCs or controllers.
PLC communication supports automatic batch reading, with fast communication speed.
Configuration can be downloaded rapidly by USB connection, convenient for testing, upgrading and batch production.
Metal shrapnel film button, with long shelf-life nearly several million times.
Equipped with full standard real-time clock.
Wide working temperature, from -20~70C.
TP930E can use encoder to achieve value inputting and focus switches, with convenient operation.
Intuitive design- Seeing is getting.
Supporting offline simulation function, convenient procedure testing.
Supporting Windows and vector fonts, can input or indicate any language. Minimum 6*8 lattice can be supported for English input. Minimum 12*12 lattice can be supported for Chinese input. Maximum 5 lines of Chinese characters can be indicated. Maximum 8 lines of English characters can be indicated. Maximum 32*32 lattice can be supported.
PLC communication supports automatic batch reading, with high communication speed.
Supporting multi-language input and the input and indication of languages under any operation system.
Supporting 8-level user password levels and separate password level setting.
Powerful function keys, supporting values setting, increasing or decreasing, images skipping, entering or leaving etc setting function.
Adding ASII indicating components, supporting the indication of English and Number online, convenient for serial NO. and code indication etc.
Supporting events registering, alarm supporting level position and characters trigger, can customize alarm information nimbly.
TD930 Transfer tools can be supported to factories separately for batch downloading or customers upgrading. No need providing original configuration documents and prevent error modification and keep secrete.
Directly connection with Siemens S7-300 without adapters.
